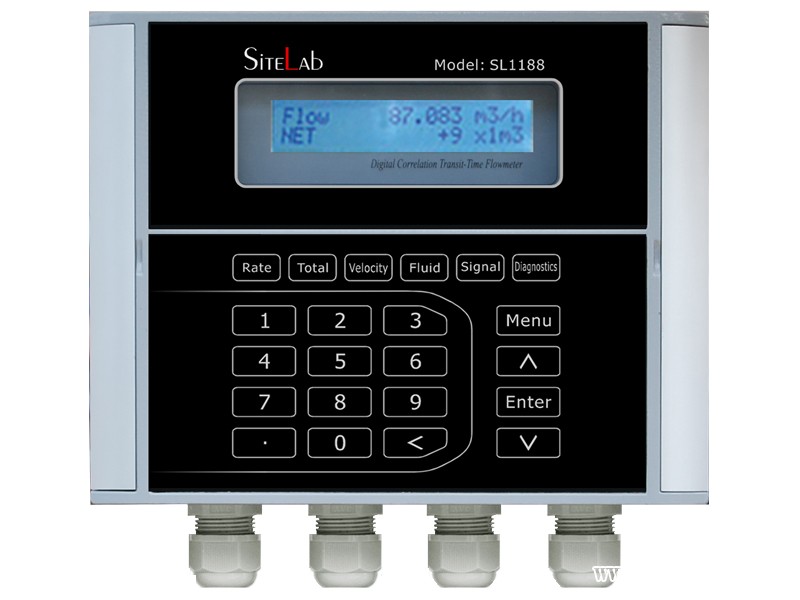

The SiteLab SL1188 Flow meters is a state-of-the-art universal transit-time Flow Meter for Heavy Industrial applications. Sophisticated electronics incorporating the latest developments in digital signal processing coupled with powerful ultrasonic transducers deliver highly accurate flow measurement for liquids in full pipes. While principally designed for clean liquid applications, the instrument is tolerant of liquids with a small quantity of air bubbles or suspended solids common in most industrial applications.
The SL1188 ultrasonic clamp on flow meters offers low power consumption, high reliability, and outstanding applicability at an economical price. An easy to read display and clear, user-friendly menu selections make using the instrument simple and convenient. The instrument can be configured via keypad without any additional programming devices, is packaged in a die cast IP65 housing, and is available in your choice of non-invasive clamp-on or insertion transducer configurations.
The SL1188 ultrasonic flow meters features a self-contained 4-20 mA current loop signal output for instantaneous flow, as well as two independent temperature inputs for thermal energy monitoring. The instrument also features a 7 digit alpha- numeric display, parallel operation of positive, negative and net flow totalizers (with user-selectable scale factors) and configurable pulse and frequency outputs (transmitted via relay and open collector) for totalized flow.
Features :
Accuracy +/-0.5% of Reading
Wide operating temperature range -40C to 150 C
One meter for a wide range of pipe sizes 25mm-5000mm
Clamp-on sensors are simple to install, leading to lower installation and labor costs
Clamp-on sensors mean no pipe cutting or process interruption and no plant shut-down
Wetted Sensors available for acoustically dead pipes.
Hygienic measurement, no risk of contamination, suitable for ultra clean liquids
Wide bi-directional Flow range of 0 to 12Metres/Second
Daily, monthly and yearly totalized flow
Internally configured batch controller makes batch control convenient
Measurement is independent of fluid conductivity meaning a wider applicability than magnetic meters
1G SD card high memory data logging, maximum memorize 512 days data.
Simple Menu driven setup with a wide range of common pipe materials, liners and fluids selectable.
Temperature inputs for energy measurement
.
SPECIFICATIONS
Transmitter (standard):
Flow range: 0 to ±40ft/s (0 to ±12m/s)
Accuracy: ±0.5 of reading
Repeatability: 0.15%
Power supply: internal lithium battery with 8 hours of use
Output :
0/4~20mA, maximum 750Ω
OCT pulse, 0~10 KHz
Relay Output , 125VAc@1A 0r 30VDc @2A
Communications: RS232 / RS485
Power consumption: 2 W
Weigh t: 4.7lb s (2.15kg)
