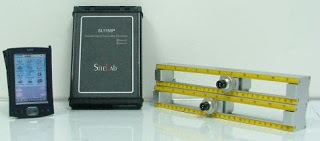

Model SL1188P is a Portable Ultrasonic flow Meter. It collects Flow Data via a TPC (Tablet PC), and uses “UFM” software to download the Flow Data. The SL1188P Portable Ultrasonic Flow Meter consists of flow sensors (ultrasonic), a flow transmitter and a Tablet Personal Computer (TPC). The Model SL1188P Portable Ultrasonic Flow-meter is the onlyflowmeter for which operation is a specialty between the electronics and operational interface. The SL1188P package ultrasonic flow metershas convenient magnetized transducer racks, good operational interface, and high memory card. It is designed to be user friendly, and even in the worst industrial environments, it is well protected by its high-strength impact resistant case with rubber ring seals and NEMA4 rating. Even if it is dropped into water it should continue to work normally. It is a portable flowmeter made with expertise.
Parameters
Data storage : 1GB (512 days)
Cable signal attentuation :-0.9dB/100m
Cable tensile strength : 300 Newtons
Rise/fall time : 40 picoseconds
Transducer installation time : 55s
Portable transducer rack magnetic force : 200 Newtons
Bluetooth communications Distance : up to 160ft (50m)
Specifications
Transmitter (standard):
Flow range: 0 to ±40ft/s (0 to ±12m/s)
Accuracy: ±0.5% of reading
Repeatability: 0.15%
Power supply: internal lithium battery with 8 hours of use
Output: 0/4~20mA, maximum 750Ω
Power consumption: 1W
Weight: 3.3lbs (1.5kg)
