SiteLab ultrasonic flow meters products are application to irrigation, water supply, industrial water, electric power, orchards etc. Depend on the “PicoFly” patent technology, SiteLab ultrasonic products are application to aerospace and aviation frontier etc.

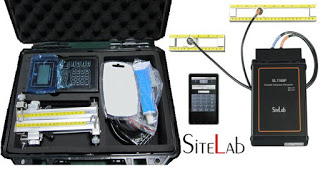

The model SL1168P portable handheld ultrasonicflowmeter(here-in after referred to as SL1168P) is a true state-of-the-art transit-time flowmeter designed using the latest digital technology and intelligent self-correcting sonic transmission technology. SL11688P flow meters features high reliability and low maintenance. Compared with other flowmeters and other ultrasonic flowmeters, the SL1168Pportable flow meter is characterized by high accuracy, high reliability, superior performance, rapid response to flow changes, and low cost.
Applications by Industry
Water supply
Waste water treatment
Seawater desalinization
Pure/Ultra-pure water
Industrial process water
Cooling/Heating water
Petrochemical
Chemical
Crude oil
Lubricant oil
Beverages
Many others
Specifications :
-
Transmitter (standard):
Velocity range: 0 ~ ± 40ft/s (0 ~±12m/s)
Accuracy: ±1% of reading
Repeatability: 0.2%
Power supply: 11.1V rechargeable Lithium Battery
Power for 16 hours
Output: 0/4~20mA, maximum 750Ω
Transducers (magnetic clamp-on sensor rack)
Measurement Pipe range: 25mm ~ 1200mm
Protection rating: IP68
Temperature range: -10℃ ~ 80℃)
Transducer cable standard length: 16ft (5m)
